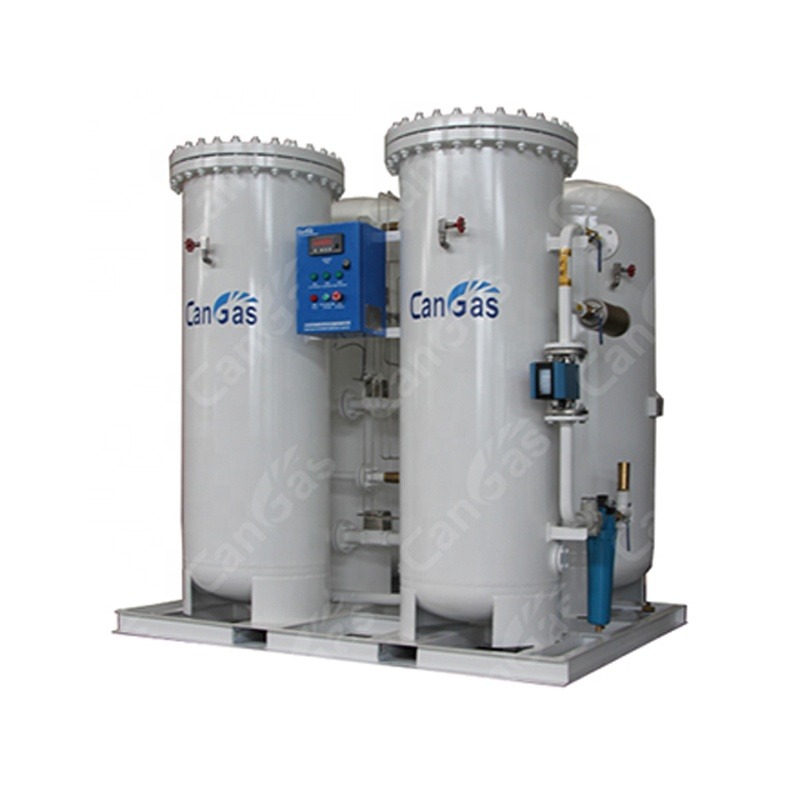

Onsite PSA Oxygen Generator - Custom Engineered Oxygen Gas Generating Systems
There are two main types of oxygen generator technologies: Pressure Swing Absorption (PSA) and Vacuum Pressure Swing Absorption (VPSA).
Ambient air is approximately 21% oxygen, 78% nitrogen, and the balance is trace. Oxygen generators use PSA technology to produce oxygen with a sieve material called zeolite. A compressed air stream is passed through a pressure vessel filled with zeolite sieve. The porosity structure of Zeolite allows the material to capture and absorb the larger nitrogen molecules as the compressed air flows through, leaving a stream of oxygen to flow out the opposite end of the pressure vessel.
VPSA oxygen generators are designed for higher oxygen flow capacities and use blowers instead of compressed air as well as a vacuum pump which is used to assist with optimal molecular sieve regeneration. As a standard, these oxygen generators operate with a lower working pressure, but oxygen booster compressors can be included in the system scope of supply for higher oxygen pressure requirements. VPSA oxygen generating systems will typically have much lower operating costs then PSA type oxygen generators.
Onsite oxygen generators are highly beneficial in terms of increasing productivity and convenience, but when it comes to price, they can have a quick return on investment. The cost for oxygen can be reduced by up to 70% by having an oxygen generator installed onsite. The following are typical costs for standard oxygen supply in the North American marketplace.
Cylinder / oxygen
$3.00 - $15.00 per M3 / $8.00 - $40.00 per 100 CF
Liquid dewar / oxygen
$0.70 - $1.50 per M3 / $1.80 - $4.00 per 100 CF
Bulk liquid / oxygen
$0.15 - $0.75 per M3 / $0.40 - $2.00 per 100 CF
Based on an oxygen purity of 95%, geographic location, and associated electricity costs, typical operating costs (energy and maintenance) for generating oxygen on site can range from as low as $0.07 per M3 / $0.18 per 100 CF to $0.11 per M3 / $0.28 per 100 CF.
Before onsite oxygen generating systems were invented, industries, hospitals, and businesses needed to purchase oxygen from gas suppliers and were charged to have it delivered. With the development of PSA and VPSA oxygen generating systems the risks and hassles associated with purchasing oxygen in bulk were eliminated.
The following are some of the benefits of generating your own oxygen:
On average, it costs between one third to one half less per CF for self-generated oxygen than what it costs to continuously procure cylinder or cryogenic oxygen from a gas supplier. With onsite oxygen generation, there are no delivery fees and having a system onsite can pay for itself within 18 months.
Oxygen generating technology has been available for decades. Having an onsite oxygen generating system is dependable and simple. It uses surrounding air in the atmosphere to create the oxygen needed, which means you will never worry about having a shortage of oxygen.
Without the requirement of having oxygen tanks delivered, the potential for hazards and injury is 100% eliminated. There is no need for your employees to handle or transfer the tanks from trucks to your facility.
Another benefit of onsite oxygen generation is that they can function anywhere electricity and air is available.
There are a multitude of oxygen applications where oxygen can be supplied cost effectively by oxygen generators. These include the following:
Onsite oxygen generators are ideal for aquaculture. They enable fish farms to dissolve oxygen into a variety of tank sizes, which helps to boost stocking densities and raise healthier fish. Oxygen increases reproduction rates, ensures the fish flavour is better because of a cleaner environment, prevents ice from forming during the winter, and displaces excess nitrogen in the tank.
Offensive odours and bacteria in sewage water are a challenge to eradicate with inadequate levels of purification, which is why onsite oxygen tanks are so valuable to this industry. With 24/7 oxygen availability, you can reduce nitrogen levels, meet peak O2 demands, re-purify wastewater, control odours, deter corrosion damage, and meet the increased requirements for wastewater purification.
To boost gold recovery and reduce your mine’s operating costs, onsite oxygen generation is the solution. It increases the level of dissolved oxygen in your mine’s leaching process without the added costs of purchasing liquid oxygen and having it delivered to your facility. With onsite oxygen generation, you can increase your gold and silver recovery, decrease cyanide costs, decreases waste treatment costs, and more.
With an onsite oxygen generator system, you can lower your ongoing oxygen costs by up to 70% depending on the application. There are not too many technologies out there that will achieve those types of cost savings. To install your own nitrogen gas generator for your industrial application, contact Advanced Gas Technologies Inc.
We provide the following oxygen generator services:
We install generators across Canada, the United States, and most regions around the world through our global network of industry partners.
Our team offers around-the-clock service support for oxygen generators. If you require maintenance for your existing system, we will ensure that your generators are up and running in great condition so you can get back to your operations.
Since 1992, CAN GAS has been marketing, installing, and maintaining industrial gas generating systems, standard industrial compressor systems, and engineered compressor systems throughout the world.
Contact us at sales1 (AT) can-gas.com, 0086 139 1038 2975, www.can-gas.net.
Industrial applications of CanGas® Onsite PSA oxygen generator package:
With 21 years experience of researching, engineering, designing, manufacturing, sales and service in the air separation field and dedicated, CAN GAS provides complete solution for your gas supply onsite. Visit www.can-gas.net and contact our sales.
Also applicable for medical services.
